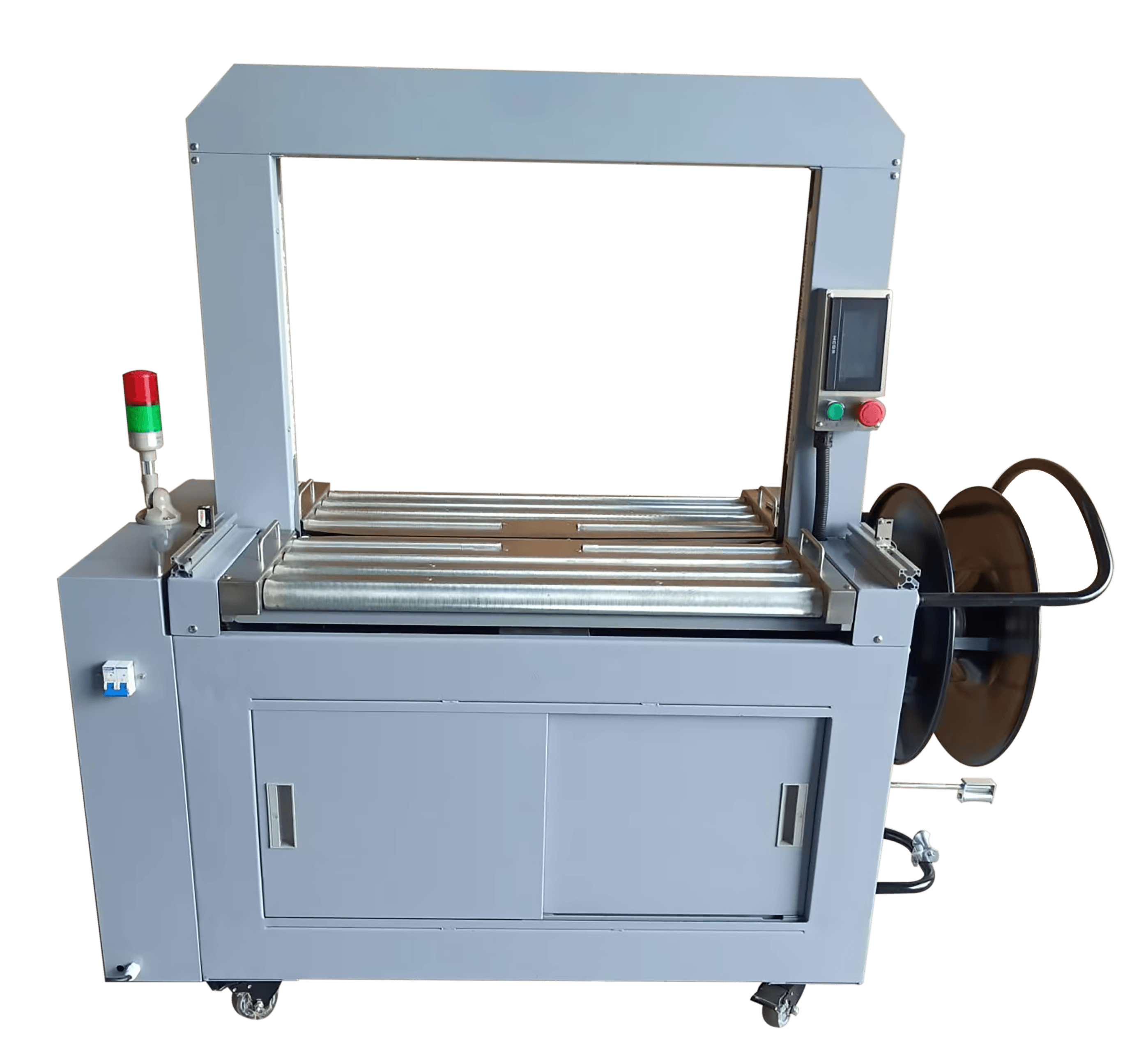

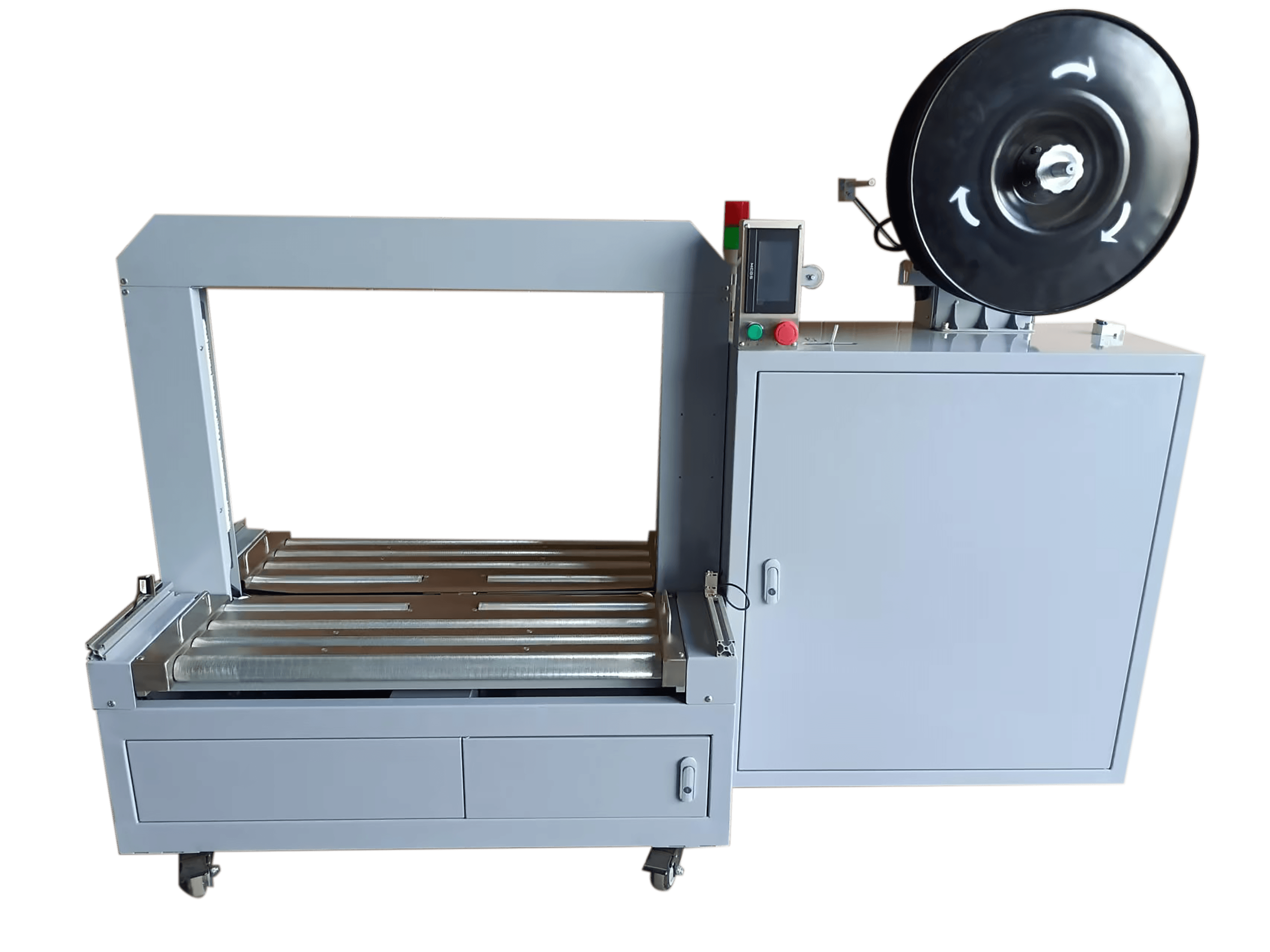

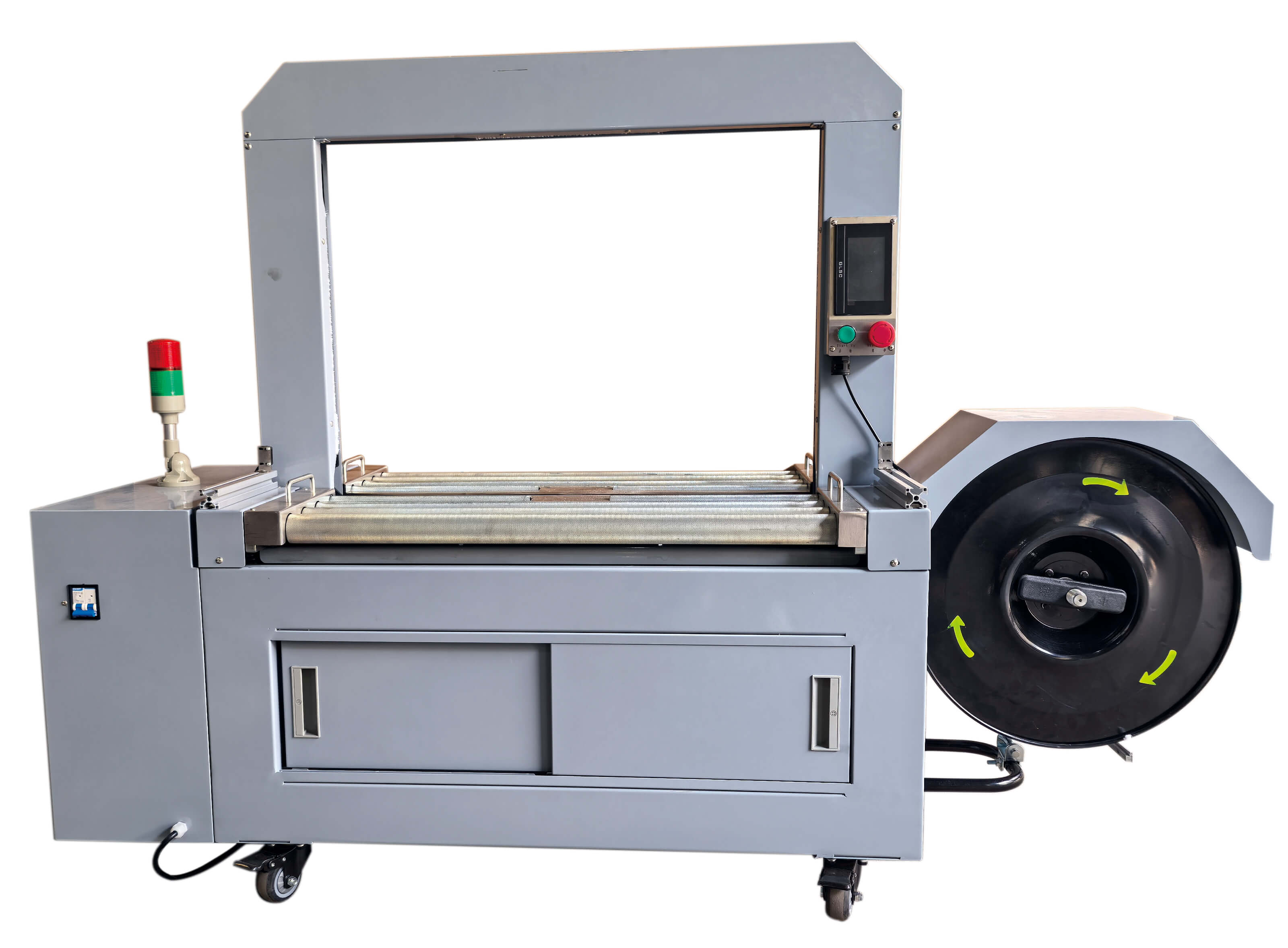

Powered Roller Strapping Machine SX25 – view 1
Click to enlarge
Strapping Machines

Powered Roller Strapping Machine SX25

SX25 powered roller strapping machine: AC220V 550W, cycle ≤1.5 s/strap, tension 0–60 kg, 80 kg load. Powered roller conveying for smooth production line integration.

Key Features

  • Powered roller table for smooth package feeding
  • Cycle time ≤ 1.5 s/strap
  • Adjustable tension 0–60 kg
  • 80 kg load capacity
  • Ideal for conveyor line integration
Request a QuoteContact Sales
Factory DirectCustom Options AvailableTechnical Support

Technical Specifications

Detailed specifications for the Powered Roller Strapping Machine SX25

ModelSX25
Power SupplyAC220V / 50Hz, 550W / 2.5A
Strapping Speed≤ 1.5 s/strap
Tension Force0–60 kg (adjustable)
Load Capacity80 kg
Strap Width(9–15 mm) ± 1 mm
Strap Thickness(0.5–1.0 mm) ± 0.1 mm
Strap Roll Width160 mm; Inner Ø 200–210 mm; Outer Ø 400–500 mm
Max Strap Pull150 kg
Min Package SizeW100 mm × H10 mm
Max Package SizeW700 mm × H500 mm
Machine DimensionsL1530×W620×H1100 / L1530×W620×H1250 mm
Table Height450 mm / 600 mm / 750 mm
Machine Weight200 kg
Noise Level≤ 60 dB(A)
Environment0–40°C; RH ≤ 90%
Frame SizeStandard W800×H600 mm (customizable)
