Strapping Machines

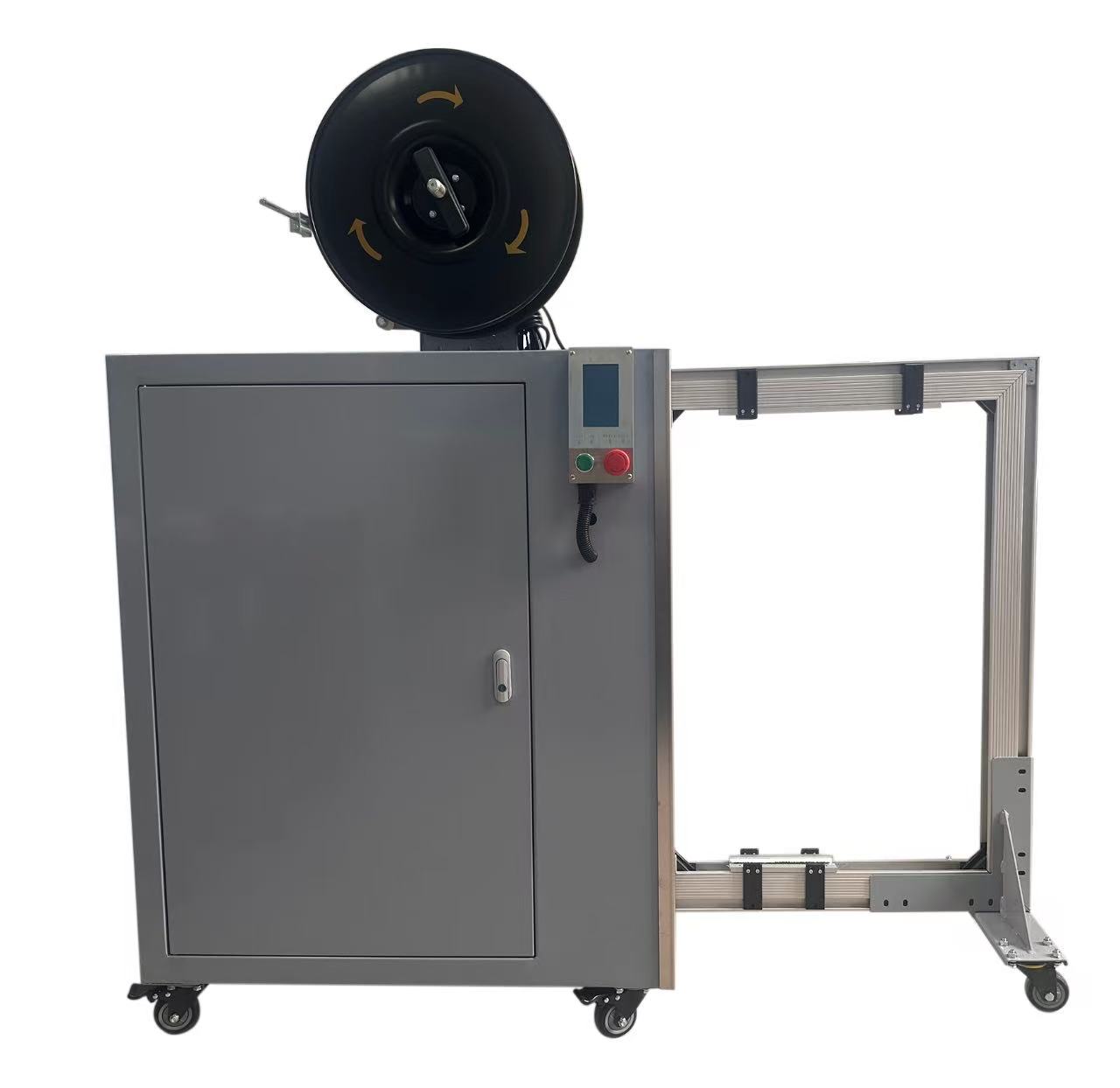

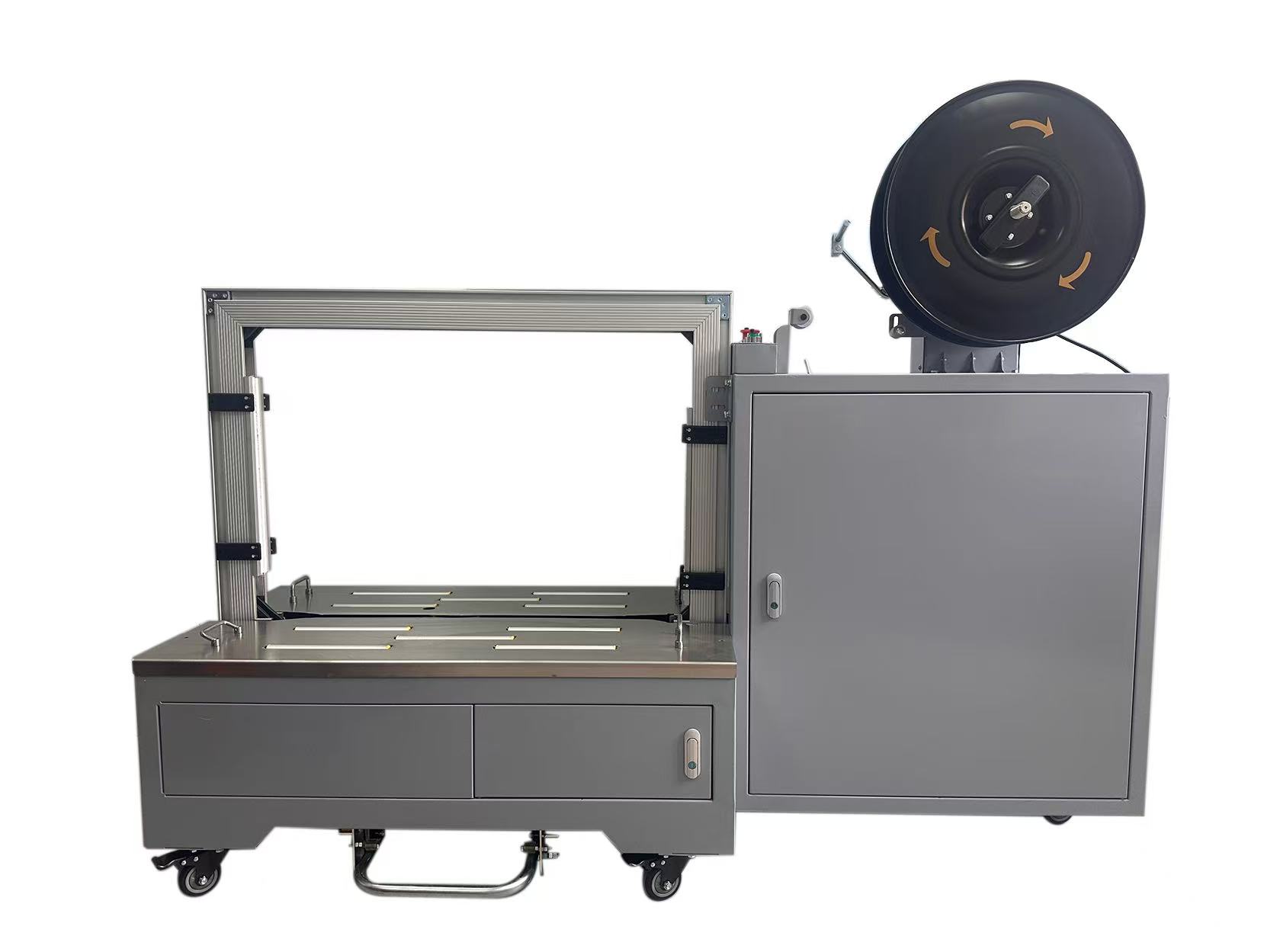

Fully Automatic Strapping Machine MJ30
MJ30 fully automatic strapping machine: AC220V 550W, cycle ≤1.5 s/strap, adjustable tension 0–60 kg, 80 kg load capacity. Available in table heights of 450 mm, 600 mm, or 750 mm.
Key Features
- Cycle time ≤ 1.5 s/strap
- Adjustable tension 0–60 kg
- 80 kg load capacity
- Table heights: 450 mm / 600 mm / 750 mm
- Multiple frame size options available
Factory DirectCustom Options AvailableTechnical Support
Technical Specifications
Detailed specifications for the Fully Automatic Strapping Machine MJ30
| Model | MJ30 |
| Power Supply | AC220V / 50Hz, 550W / 2.5A |
| Strapping Speed | ≤ 1.5 s/strap |
| Tension Force | 0–60 kg (adjustable) |
| Load Capacity | 80 kg |
| Strap Width | (9–15 mm) ± 1 mm |
| Strap Thickness | (0.5–1.0 mm) ± 0.1 mm |
| Strap Roll Width | 160 mm; Inner Ø 200–210 mm; Outer Ø 400–500 mm |
| Max Strap Pull | 150 kg |
| Min Package Size | W100 mm × H10 mm |
| Max Package Size | W700 mm × H500 mm |
| Machine Dimensions | L1569×W620×H1700 / L1850×W620×H1500 / L1350×W620×H1440 mm |
| Table Height | 450 mm / 600 mm / 750 mm |
| Machine Weight | 130 kg |
| Noise Level | ≤ 60 dB(A) |
| Environment | 0–40°C; RH ≤ 90% |
| Frame Size | Standard W800×H600 mm (customizable) |
